Understanding Butterfly Valves: Types, Applications, and Benefits for Industrial Use

Butterfly valves play a vital role in modern industrial flow control systems. Known for their compact design, cost-efficiency, and versatility, butterfly valves are widely used in water treatment, chemical processing, oil and gas, HVAC systems, and more. As industries demand increasingly reliable and durable flow solutions, the butterfly valve has become a preferred choice due to its quick operation, low pressure drop, and adaptability to different applications.

This article provides a comprehensive guide to butterfly valves—covering their structure, working principles, various types, typical industrial applications, advantages and limitations, and how to choose the right valve for your system.

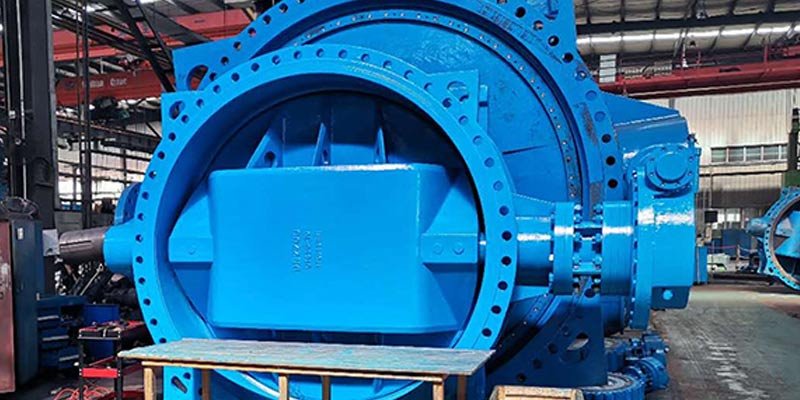

1. Working Principle of a Butterfly Valve

A butterfly valve is a quarter-turn rotational valve that regulates flow by turning a disc within the flow path. The valve consists of several key components:

• Valve Body: Connects to the piping system (wafer or lug-style)

• Disc (Butterfly): Rotates to block or allow flow

• Stem: Connects the actuator or handle to the disc

• Seat: Provides a sealing surface to prevent leakage

• Actuator/Handle: Manually or automatically controls valve position

When the valve is in the closed position, the disc sits perpendicular to the flow, blocking it entirely. When opened, the disc turns 90 degrees to align with the flow direction, minimizing obstruction.

2. Common Types of Butterfly Valves

Butterfly valves come in multiple designs to suit different applications, pressures, and temperatures:

• Wafer Type Butterfly Valve:

  Fits between flanges and is held in place by bolts. Most common and cost-effective for general industrial use.




• Lug Type Butterfly Valve:

  Has threaded lugs that allow it to be installed between two flanges using separate bolts. Suitable for dead-end service.




• Double Offset Butterfly Valve (High-Performance):

  The shaft is offset from the center of the disc and the pipe, reducing seat wear. Handles higher pressure and temperature.




• Triple Offset Butterfly Valve:

  Offers metal-to-metal seating and is used in critical applications requiring bubble-tight shutoff and resistance to high temperatures.




• Rubber-Lined Butterfly Valve:

  Soft-seated for water, air, and low-pressure systems. Inexpensive and corrosion-resistant.




• PTFE-Lined Butterfly Valve:

  Used for aggressive chemicals and acids.




• Metal-Seated Butterfly Valve:

  Designed for high-temperature or abrasive services.

3. Industrial Applications of Butterfly Valves

Butterfly valves are suitable for a wide range of flow control tasks across different industries:

• Water Treatment & Wastewater Plants:

  For regulating flow in pipelines, tanks, and filtration systems.




• Oil & Gas Industry:

  Used in refineries, pipelines, and storage facilities for isolation and control.




• Chemical Processing:

  PTFE-lined and metal-seated valves handle corrosive and high-temperature media.




• HVAC Systems:

  Control air and water flow in heating, ventilation, and cooling installations.




• Power Generation:

  Handles high-pressure steam or cooling water circuits.




• Food & Beverage:

  Sanitary butterfly valves for hygienic environments.

4. Key Advantages of Butterfly Valves

• Compact Design:

  Takes up less space compared to gate or globe valves.




• Fast Operation:

  Quarter-turn mechanism ensures quick opening/closing.




• Cost-Effective:

  Lower installation and maintenance costs.




• Low Pressure Drop:

  Minimal resistance to flow when fully open.




• Wide Size Range:

  Available in diameters from small pipes to large industrial pipelines.




• Flexible Installation:

  Can be installed in both vertical and horizontal pipelines.

5. Limitations to Consider

Despite their many benefits, butterfly valves have some limitations:

• Not suitable for high-pressure drop systems where precise throttling is needed.

• Disc always remains in the flow, potentially causing turbulence or pressure loss.

• Soft-seated valves may wear over time, especially with abrasive media.

• Not ideal for slurry or solid-heavy applications without specialized design.

6. Choosing the Right Butterfly Valve

Selecting the correct butterfly valve depends on several factors:

• Media Type:

  Clean water, gas, steam, corrosive fluids, or slurry?




• Pressure and Temperature:

  Choose the valve body and seat materials accordingly.




• Valve Function:

  On/off isolation or throttling?




• Installation Location:

  Flange standard (ANSI, DIN), space availability.




• Material Requirements:

  Carbon steel, stainless steel, ductile iron, or lined options.




• Actuation Needs: Manual, electric, or pneumatic?

7. Customization and OEM Options

Many industries require butterfly valves customized to specific sizes, connection standards, or coatings. OEM manufacturers offer：

• Custom drawings or model-based production

• International flange standards (EN, ANSI, JIS)

• Special coatings like epoxy, PTFE, or black oxide

• Quality control including hydro testing, seat leak testing, and material certification

Butterfly valves are a key component in fluid handling systems across diverse industries. With numerous types and configurations available, selecting the right valve involves understanding your application, media, pressure rating, and environment. Whether you require a wafer-type valve for basic water flow or a triple-offset valve for critical steam isolation, butterfly valves offer an optimal balance of performance, durability, and value.
