Ring Anchor System

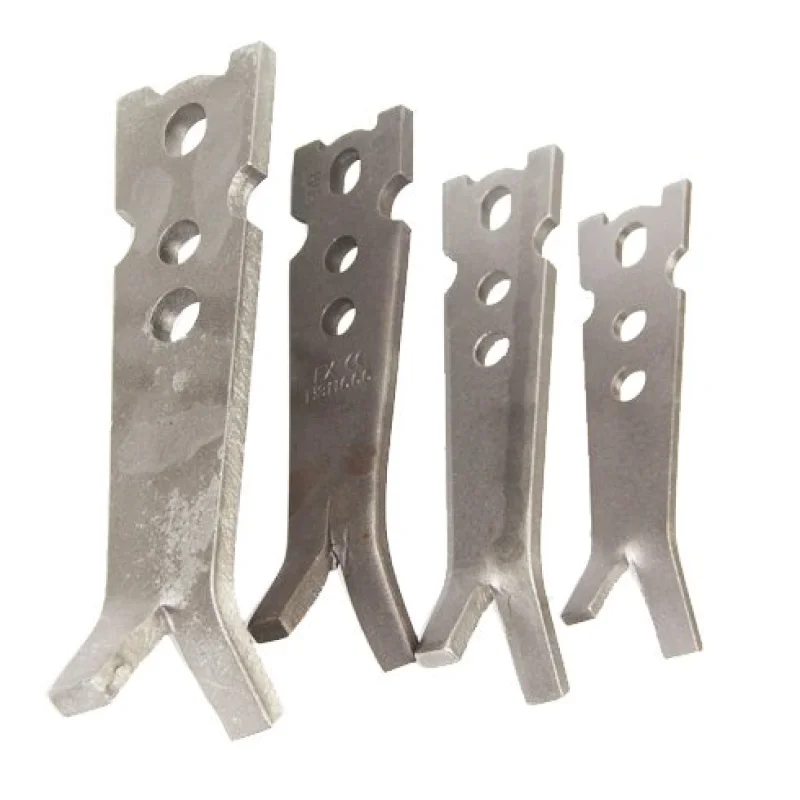

Erection Anchors
Application:
The special shaped anchor head means that that the pitching/turning loads are taken by the anchor and not to the concrete. This helps to prevent spalling of the concrete.
Specification:
| Precast Concrete Hardware-Erection Anchor | ||||||||
|---|---|---|---|---|---|---|---|---|

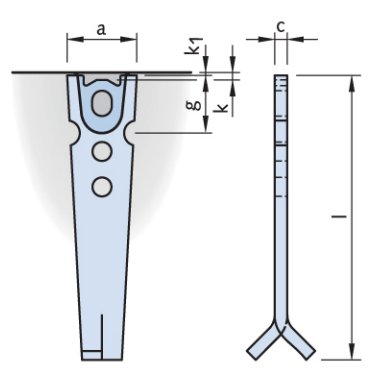

| Picture | Product Code | Safe Working Load (kg) | Length | Width | Thickness | Hole Dia. | Diamension K | Diamensions K1 |
 | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| EA- 014200 | 1400 | 200 | 55 | 6 | 14 | 10 | 5 | |
| EA- 025230 | 2500 | 230 | 55 | 10 | 14 | 10 | 5 | |
| EA- 040270 | 4000 | 270 | 70 | 12 | 18 | 10 | 5 | |
| EA- 05290 | 5000 | 290 | 70 | 15 | 18 | 10 | 5 | |
| EA- 075320 | 7500 | 320 | 95 | 15 | 27 | 15 | 6 | |
| EA- 100390 | 10000 | 390 | 95 | 20 | 27 | 15 | 6 | |
Product Details
- The special shaped anchor head means that that the pitching/turning loads are taken by the anchor and not to the concrete. This helps to prevent spalling of the concrete.
- The anchors are notched to assist with the placement of additional reinforcement required in the pitching/turning operation.
