Lifting Anchor System
EATHU Double Head Anchor (Spherical Head System)
Application:

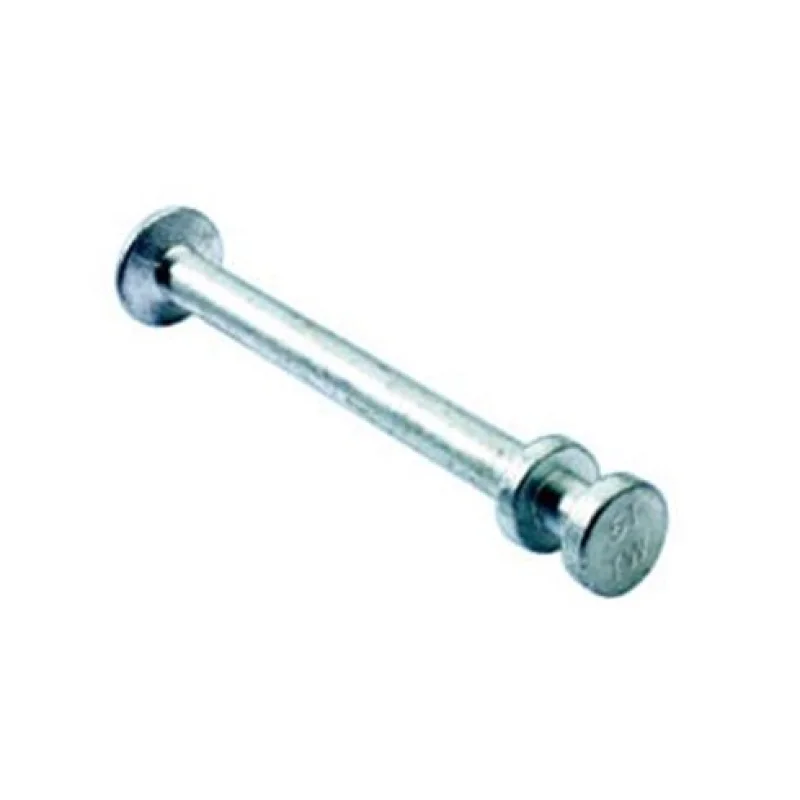

EATHU’s Double Head Lifting Anchor is a forged steel anchor designed for use in spherical head lifting systems, widely applied in precast concrete elements. This anchor type is engineered for secure lifting, transportation, and positioning of precast panels, walls, and other structural elements.
Made with high-strength forged carbon steel, this anchor offers exceptional load-bearing capacity, durability, and safety compliance with international standards. The spherical head design ensures fast and secure attachment to the lifting clutch while maintaining structural integrity during handling.
Specification:
| Precast Concrete Hardware-Double Head Anchor | ||||||
|---|---|---|---|---|---|---|

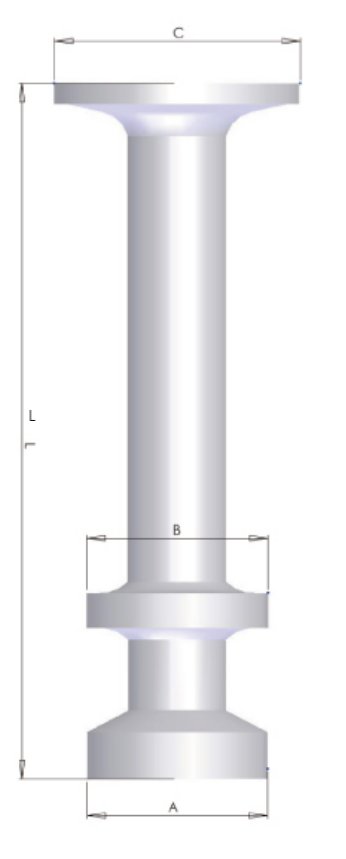

| Picture | Product Code | Safe Working Load （kg） | Length(mm) | Dimensions （mm） | ||
 | L | C | B | A | ||
| P-13-55 | 1300 | 55 | 25 | 19 | 19 | |
| P-13-85 | 1300 | 85 | 25 | 19 | 19 | |
| P-13-120 | 1300 | 120 | 25 | 19 | 19 | |
| P-25-85 | 2500 | 85 | 35 | 26 | 26 | |
| P-25-120 | 2500 | 120 | 35 | 26 | 26 | |
| P-25-170 | 2500 | 170 | 35 | 26 | 26 | |
| P-50-75 | 5000 | 75 | 50 | 36 | 36 | |
| P-50-120 | 5000 | 120 | 50 | 36 | 36 | |
| P-50-240 | 5000 | 240 | 50 | 36 | 36 | |
Product Details
Product Features & Benefits
Material: Forged Carbon Steel or Stainless Steel (optional)
High Load Capacity: Suitable for various load classes, including heavy precast components
Durable Finish: Anti-rust surface treatment available (zinc plating or hot-dip galvanizing)
Compatibility: Works with standard lifting clutch and spread anchor foot
Precision Manufacturing: CNC-machined for dimensional accuracy
OEM Customization Available: Logo, packaging, dimensions, and load ratings
Typical Applications
Precast concrete wall panels
Precast columns, slabs, and staircases
Infrastructure projects (tunnels, bridges, retaining walls)
Modular construction lifting solutions
Installation & Usage Guidelines
Insert anchor into the mold before pouring concrete
Ensure proper positioning and embedment depth
After curing, attach lifting clutch to spherical head
Perform lifting under vertical load to avoid shear failure
Only use certified lifting clutches matching the anchor load class
