Butterfly Valve Working Principle, Structure, and Industrial Applications
Why Butterfly Valves Matter in Metal Industries
Butterfly valves are essential in many industrial fluid control systems due to their compact design, lightweight structure, and cost-efficiency. In the metal manufacturing industry, butterfly valves play a critical role in managing fluids such as cooling water, chemical solutions, and liquid metals. With increasing demands for automated and reliable systems, choosing the right butterfly valve has become a strategic decision for engineers and procurement teams.
At EATHU, we specialize in OEM casting solutions and understand the importance of quality control valves like butterfly valves in modern industrial setups.

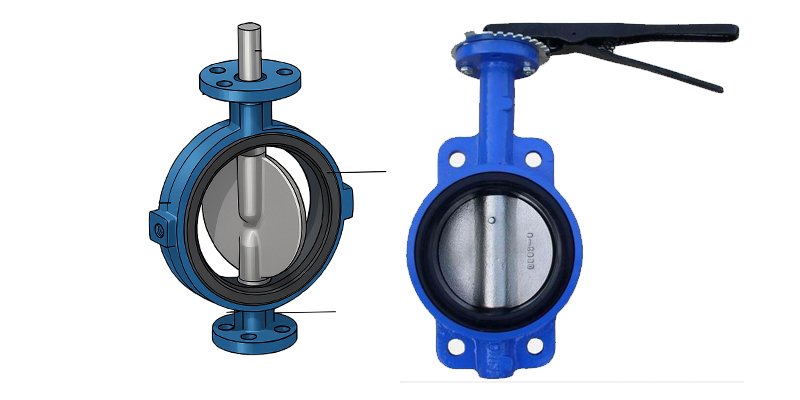

How a Butterfly Valve Works
A butterfly valve operates using a quarter-turn rotational motion. The key components are the valve body, disc (or butterfly plate), stem, seat, and sealing mechanism. Here’s how it works:
Open Position: When the disc is parallel to the flow direction, the valve is fully open, allowing maximum flow.
Close Position: When the disc rotates 90 degrees to be perpendicular to the flow, it blocks the passage and stops flow.
Modulating Position: Partial openings allow for flow regulation, depending on the angular position of the disc.
Butterfly valves are favored for their ability to start, stop, and regulate flow with minimal movement, making them energy-efficient and quick-acting.
Structural Components Explained
Understanding the internal structure is key to selecting the right butterfly valve. Below are the main parts:
Valve Body: Usually made from cast iron, carbon steel, or stainless steel. EATHU offers high-quality casting for OEM butterfly valve bodies.
Disc: Responsible for blocking or permitting flow. Materials vary from ductile iron to stainless steel depending on fluid type.
Stem: Connects the actuator or handle to the disc, transferring the turning force.
Seat: Where the disc rests to create a seal. Can be made of rubber, PTFE, or metal.
Seal: Prevents leakage. Types include resilient (soft) and metal-to-metal seals.
An annotated cross-sectional diagram is recommended for clarity. EATHU can also provide customized CAD models upon request.
Key Applications in Metal Processing
Butterfly valves are found across various systems in metalworking plants:
Cooling Systems: Regulate water flow in machinery.
Wastewater Lines: Control chemically treated effluents.
Chemical Injection Lines: Where corrosion-resistant materials are needed.
Molten Metal Handling (in indirect systems): High-temperature rated butterfly valves manage steam or thermal oils.
Case Example: A European aluminum smelter replaced traditional gate valves with butterfly valves supplied by EATHU OEM partners, reducing downtime by 30% due to easier maintenance and faster actuation.
Maintenance & Troubleshooting
A key advantage of butterfly valves is ease of maintenance. Still, regular inspection ensures longevity:
Routine Checks: Inspect for leaks, ensure stem movement is smooth, check disc alignment.
Common Issues:
Leakage: Worn seats or damaged seals.
Sticking: Caused by corrosion or debris.
Actuator failure: Electrical or pneumatic faults.
We recommend a maintenance cycle every 6 to 12 months, depending on usage intensity. Keep a ready stock of seals and seats for quick replacement.
Selection Guide for Industrial Use
Below is a simplified table to help engineers choose the right valve:
| Factor | Options | Recommendation |
|---|---|---|
| Body Material | Cast iron, Carbon steel, SS304/316 | Use SS316 for corrosive media |
| Seal Type | Rubber, PTFE, Metal | PTFE for high-temp & chemical resistance |
| Operation | Manual, Pneumatic, Electric | Electric for remote/automated systems |
| Size Range | DN50–DN1200 | Based on pipeline spec |
| Pressure Rating | PN10, PN16, ANSI150 | Match system pressure |
Smarter, Greener Valves
Modern butterfly valves are integrating smart sensors and control modules. Features include:
Position feedback for real-time monitoring
Remote operation via DCS/SCADA
Eco-friendly materials that reduce emissions during production
OEMs like EATHU are moving toward producing butterfly valve components with recyclable materials and advanced casting techniques that minimize waste.
Partner with EATHU for Precision-Cast Butterfly Valves
Butterfly valves offer a balance of performance, affordability, and reliability. Their adaptability makes them ideal for modern industrial systems, especially in metal-related processes.
If your project demands high-quality butterfly valve components or custom OEM solutions, EATHU is your trusted partner. Contact us today to discuss your project needs and get a quote tailored to your specifications.
