Understanding Flanged Gate Valves by EATHU
Understanding Flanged Gate Valves by EATHU
In the intricate world of industrial fluid control, valves stand as sentinels, regulating the flow of essential substances that power our world. Among the myriad of valve types available, the gate valve holds a significant position, renowned for its straightforward on/off control and minimal resistance to flow. At EATHU, we understand the critical role that high-quality valves play in ensuring operational efficiency and safety across diverse industries. That's why we're dedicated to providing robust and reliable valve solutions, including the versatile and widely utilized flanged gate valve.
This article delves into the structural intricacies of flanged gate valves, exploring the design elements that contribute to their effectiveness and longevity. Understanding these features is paramount for making informed decisions when selecting valves for your specific application, and as your trusted partner, EATHU aims to provide you with the knowledge you need to succeed.
The Fundamental Principle: How a Gate Valve Works
Before we delve into the specifics of the flanged design, let's briefly revisit the core functionality of a gate valve. Unlike valves that throttle flow, gate valves are primarily designed for on/off service. They operate by lifting a gate (a rectangular or wedge-shaped barrier) out of the path of the fluid to allow flow or lowering it to block the flow completely. When fully open, the gate valve offers an unobstructed passage, resulting in minimal pressure drop across the valve – a key advantage in many applications.
The Significance of Flanged Connections
The term "flanged" in the name refers to the connection method used to integrate the valve into a pipeline. Flanged connections involve bolting together two mating flanges, one attached to the valve and the other to the pipe. This method offers several advantages:
Robust and Secure Connection: Flanged joints provide a strong and leak-tight seal, particularly crucial in high-pressure applications.
Ease of Installation and Maintenance: The bolted connection allows for relatively easy installation and removal of the valve for inspection, cleaning, or replacement without disrupting the entire pipeline.
Versatility in Materials: Flanged connections can be implemented with various materials, allowing for compatibility with a wide range of fluids and operating conditions.

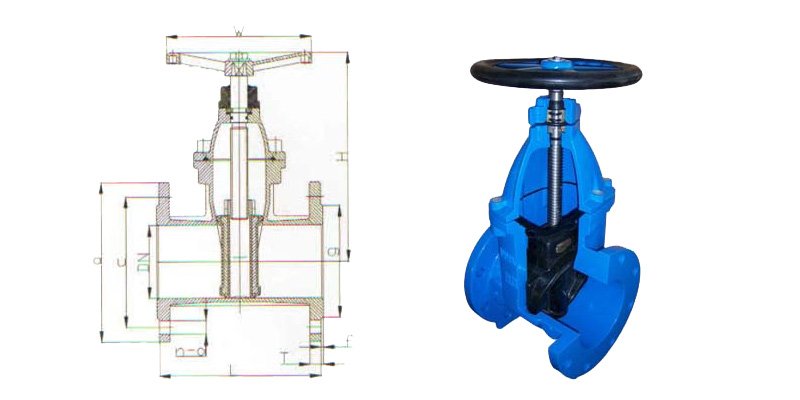

Deconstructing the Flanged Gate Valve: Key Structural Features
The structural integrity and performance of a flanged gate valve depend on the careful design and construction of its key components. Let's explore these in detail:
1. Valve Body and Bonnet:
The valve body forms the main pressure-containing envelope of the valve and houses the internal components. For flanged gate valves, particularly those designed for larger pipe diameters, the body typically incorporates flanges with pre-drilled bolt holes for connection to the pipeline. The shape of the valve body is often dictated by the nominal pressure it is designed to withstand. Higher pressure applications generally require more robust and often more rounded body designs to distribute stress effectively.
The bonnet serves as a cover for the valve body, providing access to the internal mechanisms, including the gate and stem. The way the bonnet is attached to the body is a critical design consideration and can vary depending on the application's requirements:
Threaded Bonnet: This is a simple and economical design often used for smaller valves and lower pressure applications. The bonnet is screwed onto the valve body
Union Bonnet: This design features a threaded bonnet secured by a union nut. It offers better resistance to leakage than threaded bonnets and is often used in applications requiring frequent maintenance
Bolted Bonnet: This is the most common type for flanged gate valves, especially in larger sizes and higher pressure classes. The bonnet is attached to the body using bolts and a gasket, providing a strong and reliable seal. EATHU prioritizes bolted bonnet designs in many of our flanged gate valve offerings due to their proven performance and safety.
Welded Bonnet: In some critical applications where leakage is absolutely unacceptable, the bonnet may be welded to the valve body, creating a permanent and highly secure joint.
Pressure Seal Bonnet: These bonnets are designed for high-pressure and high-temperature services. The internal pressure in the valve helps to create and maintain a tighter seal between the bonnet and the body.
2. Valve Stem Structure:
The valve stem connects the actuator (typically a handwheel or an automated actuator) to the gate, transmitting the motion required to open or close the valve. The design of the valve stem plays a crucial role in the valve's operational efficiency and longevity. Common types of valve stems found in flanged gate valves include:
Rising Stem with Lower Threads (Outside Screw and Yoke - OS&Y): In this design, the stem rises and falls as the handwheel is turned, and the threads are located outside the valve body. This configuration has several advantages:
The threads are protected from the fluid flowing through the valve, preventing corrosion and wear. This is particularly important in industrial environments where corrosive media are common.
The position of the stem visually indicates whether the valve is open or closed.
Lubrication of the stem threads is easier as they are accessible externally. The rising stem with yoke design is a prevalent choice in industrial applications, and EATHU offers a range of flanged gate valves featuring this robust stem design.
Non-Rising Stem (Inside Screw): In this type, the stem does not move vertically as the handwheel is turned. The threads are located inside the valve body and in contact with the fluid. This design is more compact and suitable for applications where vertical space is limited. However, the threads are susceptible to corrosion and wear from the fluid.
Rising Stem with Yoke (Inside Screw): This design combines a rising stem with the yoke structure but has the threads inside the valve body. While it offers visual indication of the valve's position, the threads remain in contact with the fluid.
3. Valve Seat Structure:
The valve seat is the surface on which the gate rests to form a tight seal when the valve is closed, preventing the flow of fluid. The design and material of the valve seat are critical for achieving reliable shut-off. In flanged gate valves, the valve seats can be designed in several ways:
Integral Seat: In some designs, the valve seats are machined directly into the valve body. This provides a cost-effective solution for certain applications.
Replaceable Seat Rings: More commonly, especially in higher-grade valves, the valve seats are designed as separate rings that are threaded, welded, or interference-fitted into the valve body. This offers several benefits:
Easier and more cost-effective maintenance, as worn seat rings can be replaced without replacing the entire valve body.
The ability to use different seat materials to optimize for specific fluid and temperature conditions. EATHU offers flanged gate valves with various seat material options to cater to diverse industrial needs.
The connection methods for replaceable seat rings include：
Interference Fit: The seat ring is machined with a slightly larger diameter than the recess in the body and is then pressed into place, creating a tight seal.
Threaded Connection: The seat ring has threads that engage with corresponding threads in the valve body.
Welded Connection: The seat ring is welded to the valve body, providing a highly secure and leak-proof connection.
Applications Across Industries
The robust design and effective shut-off capabilities of flanged gate valves make them suitable for a wide array of applications across various industries, including:
Oil and Gas: For isolating flow in pipelines, refineries, and storage facilities, handling crude oil, natural gas, and refined products under high pressure and temperature.
Chemical Processing: Controlling the flow of various chemicals, including corrosive and hazardous substances. Material selection is crucial in these applications.
Water and Wastewater Treatment: Regulating the flow of water and sewage in treatment plants and distribution networks.
Power Generation: Used in power plants to control the flow of steam, cooling water, and other fluids.
General Industrial Applications: Found in numerous manufacturing processes for on/off control of various liquids and gases.
Why Choose Flanged Gate Valves from EATHU?
At EATHU, we are committed to providing our customers with high-quality flanged gate valves that meet the stringent demands of modern industrial applications. Our valves are engineered with precision and manufactured using premium materials to ensure:
Reliable Performance: Our flanged gate valves are designed for consistent and dependable on/off operation.
Durability and Longevity: We utilize robust construction and quality materials to ensure a long service life, minimizing downtime and maintenance costs.
Variety of Materials and Configurations: EATHU offers a comprehensive range of flanged gate valves in various materials (such as carbon steel, stainless steel, and alloy steels) and configurations to suit diverse fluid types, pressures, and temperatures.
Compliance with Industry Standards: Our valves are manufactured in accordance with relevant industry standards, ensuring safety and interoperability.
Expert Support: Our team of experienced engineers and technical experts is available to assist you in selecting the right flanged gate valve for your specific needs and to provide ongoing support.
Partnering with EATHU for Your Valve Needs
Understanding the structural features of flanged gate valves is crucial for ensuring the safe and efficient operation of your industrial processes. At EATHU, we are more than just a valve supplier; we are your partners in achieving operational excellence. Our commitment to quality, reliability, and customer satisfaction ensures that when you choose EATHU, you are choosing a solution that will deliver long-term value and performance. Contact us today to discuss your specific valve requirements and experience the EATHU difference.
