Different Types of Valves Used in Fire Fighting System

Fire protection systems play a critical role in safeguarding lives, property, and industrial facilities from fire hazards. At the heart of every fire fighting system is a network of valves that control, regulate, isolate, and direct the flow of water or fire suppression agents. Selecting the right valve type is essential to ensure reliable operation during emergencies.

This article explores the different types of valves used in fire fighting systems, their functions, and their applications in commercial, industrial, and residential fire protection networks.

The Importance of Valves in Fire Fighting Systems

A fire fighting system consists of pumps, pipelines, sprinklers, hydrants, and various control devices. Valves serve as key components that manage water distribution throughout the system. They allow maintenance activities, isolate damaged sections, prevent backflow, and ensure that adequate water pressure reaches the firefighting equipment when needed.

Because fire protection systems must operate flawlessly under emergency conditions, valves used in these applications are designed to meet strict industry standards and reliability requirements.

Gate Valves

Gate valves are among the most commonly used valves in fire protection systems. Their primary purpose is to provide full flow or complete shutoff.

When fully open, the gate moves entirely out of the flow path, resulting in minimal pressure loss. This makes gate valves ideal for main water supply lines and fire sprinkler systems where unrestricted water flow is critical.

Gate valves are often installed as isolation valves, allowing sections of the fire protection network to be serviced without shutting down the entire system.

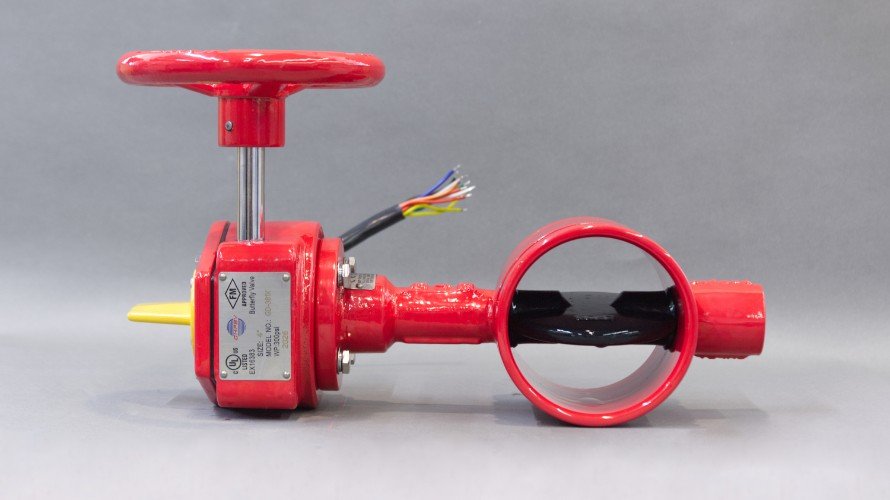

Butterfly Valves

Butterfly valves are widely used in modern fire fighting systems due to their compact design, lightweight construction, and ease of operation.

The valve utilizes a rotating disc mounted on a shaft. Turning the disc ninety degrees opens or closes the flow passage. Butterfly valves require less installation space than gate valves and are often preferred for larger pipe diameters.

In fire protection systems, butterfly valves are commonly used as control valves and isolation valves in sprinkler systems, fire pump installations, and water distribution networks.

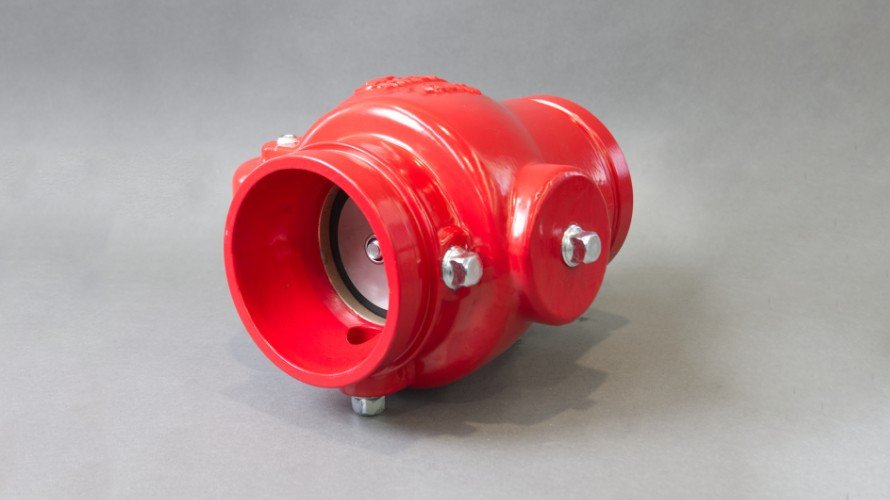

Check Valves

Check valves play a vital role in preventing reverse flow within fire protection systems.

These valves automatically allow water to flow in one direction while preventing it from flowing backward. Reverse flow can damage equipment, reduce system efficiency, or contaminate the water supply.

Check valves are frequently installed near fire pumps, backflow prevention assemblies, and water supply connections. Their automatic operation makes them an essential safety component in fire protection infrastructure.

Ball Valves

Ball valves use a rotating ball with a central bore to control fluid flow. They provide quick opening and closing action and offer excellent sealing performance.

Although not as commonly used as gate or butterfly valves in large fire protection networks, ball valves are often found in smaller fire suppression systems, auxiliary piping, testing lines, and maintenance connections.

Their simple design and durability make them suitable for applications requiring frequent operation.

Pressure Relief Valves

Maintaining proper system pressure is critical for effective fire protection. Excessive pressure can damage pipes, fittings, and equipment.

Pressure relief valves automatically release water when system pressure exceeds a predetermined limit. This helps protect fire pumps, pipelines, and other components from overpressure conditions.

These valves are commonly installed in fire pump systems and high-pressure fire protection networks.

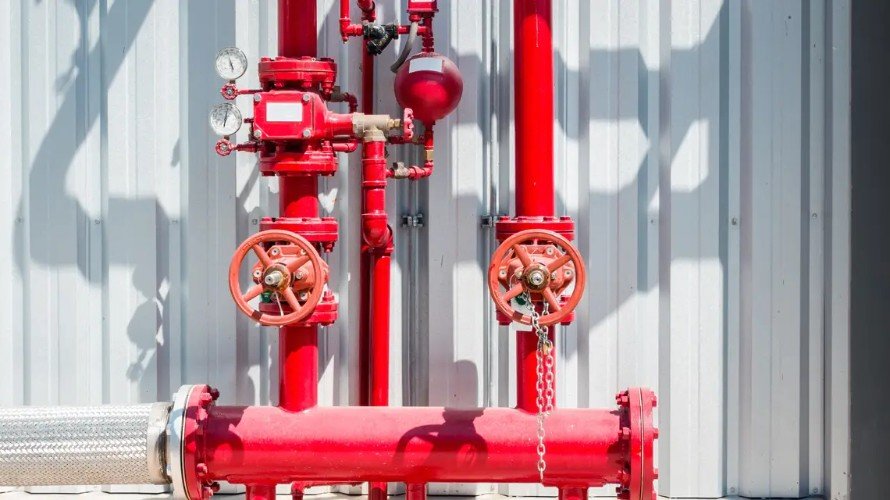

Alarm Check Valves

Alarm check valves are specifically designed for wet pipe sprinkler systems. They combine the functions of a check valve with a fire alarm activation mechanism.

When a sprinkler head operates due to heat from a fire, water flow through the alarm check valve triggers an alarm device. This provides immediate notification that the sprinkler system has been activated.

Alarm check valves are a critical component in many commercial buildings, warehouses, hospitals, schools, and industrial facilities.

Deluge Valves

Deluge valves are used in specialized fire suppression systems designed for high-hazard environments.

Unlike standard sprinkler systems, deluge systems keep sprinkler pipes dry until a fire detection system activates the deluge valve. Once opened, water flows simultaneously through all connected sprinkler nozzles.

Deluge valves are commonly installed in chemical plants, power stations, aircraft hangars, fuel storage facilities, and other locations where rapid fire suppression is required.

Pressure Reducing Valves

In tall buildings and extensive industrial facilities, water pressure can vary significantly throughout the fire protection network.

Pressure reducing valves help maintain safe and consistent downstream pressure levels. By controlling excessive pressure, these valves protect equipment while ensuring optimal sprinkler and hydrant performance.

They are frequently used in high-rise buildings and municipal fire protection systems.

Selecting the Right Valve for a Fire Fighting System

Choosing the appropriate valve depends on several factors, including system design, pipe size, operating pressure, flow requirements, and applicable fire protection standards.

Engineers and contractors must consider reliability, maintenance requirements, material compatibility, and regulatory compliance when specifying valves for fire protection applications. Valves used in fire fighting systems are typically manufactured according to internationally recognized standards to ensure dependable performance during emergencies.

Conclusion

Valves are indispensable components of every fire fighting system. From gate valves and butterfly valves that control water flow to check valves that prevent backflow and deluge valves that provide rapid fire suppression, each valve serves a specific function in maintaining system safety and effectiveness.

Understanding the different types of valves used in fire protection systems helps engineers, contractors, and facility managers select the most suitable solutions for their applications. High-quality valves contribute significantly to the reliability, efficiency, and long-term performance of fire fighting infrastructure, ensuring that critical fire protection systems are ready to operate whenever they are needed.
