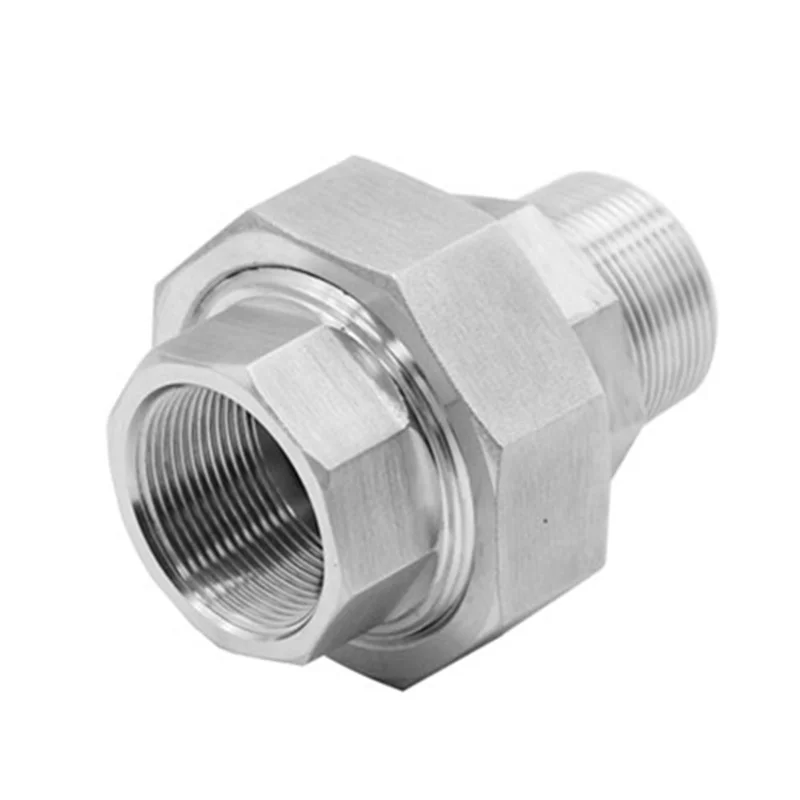

Forged Pipe Fittings

Specification:

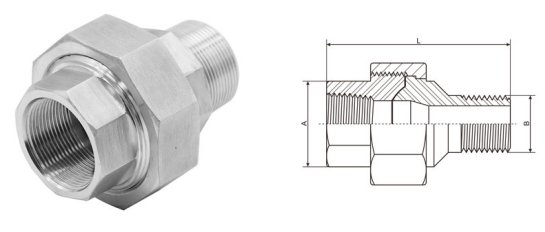

Male x Female Threaded Union Dimension

Nom.PipeBL
Size(Min)
1/4"1913.755.4
3/8"22.917.160
1/2"27.721.368
3/4"33.526.775.9
1"41.433.486
1-1/4"50.542.295.1
1-1/2"57.248.3100.5
2"70.160.3112.1

(1) Dimensions in Millimeters.

(2) Dimensions refer to MSS SP-83 Table 5.

(3) Thickness in accordance with ANSI/ASME B1.20.1 1983

(4) Dimensions may vary according to the customer's and manufacturer's requirement.
