Threaded Outlet
Application:
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
Specification:

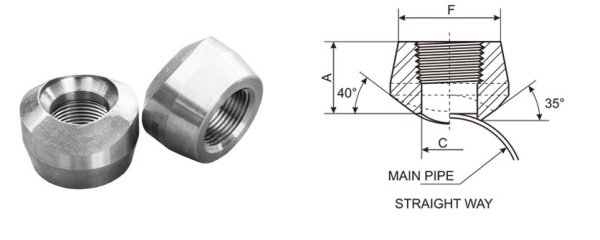

Threaded Outlet Dimension
Out-Let | Reducing Way | |||||
Pipe | A | C | F | |||
NPS | 3000lb | 6000lb | 3000lb | 6000lb | 3000lb | 6000lb |
(in) | (Sch80) | (Sch160) | (Sch80) | (Sch160) | (Sch80) | (Sch160) |
1/8" | 19 | --- | 13.7 | --- | 17.3 | --- |
1/4" | 19 | --- | 13.7 | --- | 22 | --- |
3/8" | 21 | --- | 17.1 | --- | 25.8 | --- |
1/2" | 25 | 32 | 21.3 | 16.6 | 31.3 | 33.9 |
3/4" | 27 | 37 | 26.7 | 21.2 | 37.1 | 41.2 |
1" | 33 | 40 | 33.4 | 27 | 45.5 | 49.9 |
1-1/4" | 33 | 41 | 42.2 | 35.8 | 57 | 58.6 |
1-1/2" | 35 | 43 | 48.3 | 41.2 | 64 | 66.7 |
2" | 38 | 52 | 60.3 | 51.6 | 76 | 83.2 |
2-1/2" | 46 | --- | 73 | --- | 92 | --- |
3" | 51 | --- | 88.9 | --- | 109.2 | --- |
4" | 57 | --- | 114.3 | --- | 140 | --- |
Out-Let | Straight Way | ||
Pipe | A | C | F |
NPS | 3000lb | ||
(in) | |||
1/8" | |||
1/4" | 19 | 11.5 | 22 |
3/8" | 21 | 14.5 | 25.9 |
1/2" | 25 | 16.5 | 31.4 |
3/4" | 27 | 21.5 | 37.1 |
1" | 33 | 27.2 | 45.5 |
1-1/4" | 33 | 36 | 57 |
1-1/2" | 35 | 42 | 64 |
2" | 38 | 53 | 76 |
2-1/2" | 46 | 65 | 92 |
3" | 51 | 80 | 109.2 |
4" | 57 | 104 | 140 |
(1) Dimensions in Millimeters.
(2) Thread in accordance with ASME B1.20.1
(3) 3000LBS outlet size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.
Dimensional Tolerance of MSS-SP97
Item | 1/8"to3/4" | 1"to4" | |||
Face of fitting to crotch(A) | ±0.76 | ±1.52 |
Conventional Run Size Combinations
OUTLET SIZE | ||||||||||||
1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | ||
RUN SIZE | Reducing Way | 3/8"~3/4" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 5" |
(Main Pipe) | 1"~36" | 3/4"~1-1/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | 6" | |
1-1/2"~36" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | 5" | 8" | |||
1-1/2"~3" | 2"~3" | 2-1/2" | 3" | 3-1/2" | 4" | 5" | 6" | 10" | ||||
3-1/2"~36" | 3-1/2"~6" | 3" | 3-1/2"~5" | 4"~5" | 5"~6" | 6" | 8" | 12"~14" | ||||
8"~36" | 3-1/2"~4" | 6"~8" | 6"~10" | 8"~10" | 8" | 10" | 16"~18" | |||||
5"~10" | 10"~36" | 12"~36" | 12"~18" | 10"~14" | 12"~16" | 20"~24" | ||||||
12"~36" | 20"~36" | 16"~36" | 18"~36" | 26"~36" | ||||||||
Straight Way | 3/8"~36" | 1/2"~36" | 3/4"~36" | 1"~36" | 1-1/4"~1-1/2" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 5" | |
2"~36" | 2"~3" | 2-1/2"~4" | 3"~3-1/2" | 3-1/2"~4" | 4" | 6" | ||||||
3-1/2"~36" | 5"~36" | 4"~6" | 5"~8" | 5" | 8" | |||||||
8"~36" | 10"~36" | 6" | 10" | |||||||||
8"~12" | 12"~16" | |||||||||||
14"~36" | 18"~36" |
Note:Each charted outlet size is designed to fit number of run pipe size.
Product Details

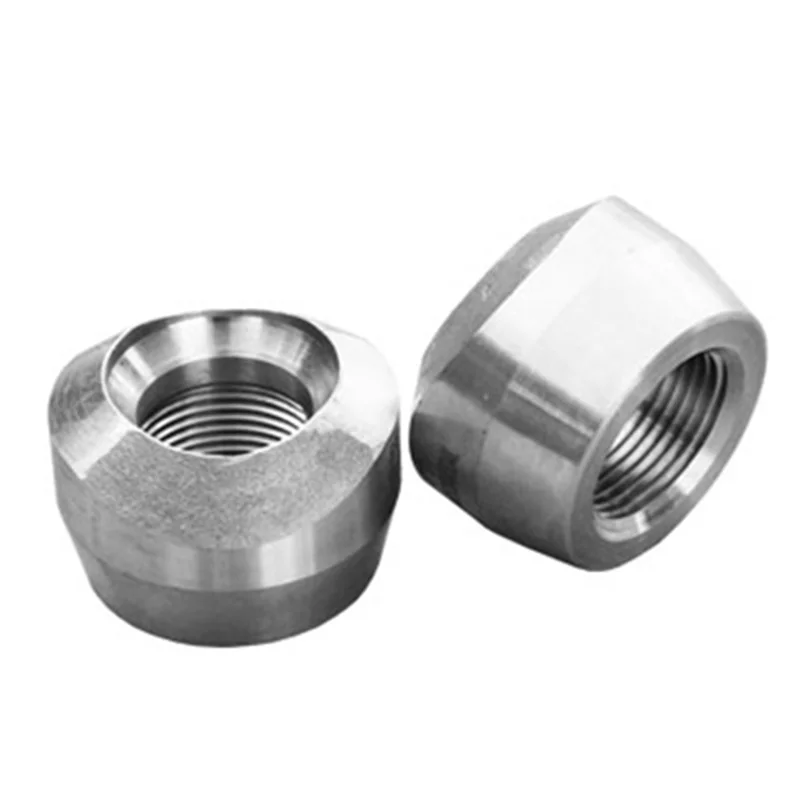

Threadolet is one type of outlets and commonly machined into BSP & NPT threads, same as other forged steel threaded pipe fittings.
Leading producer, supplier and exporter of high quality Threadolet BSP in best price. For the purpose of providing you the best product, we strict control every stage from material to the package.
MSS-SP-97 threadolet fittings are all certified, you can select what you need and use them in chemical, petrol, gas, power plant and other industries with ease. Besides, with rich production and export experience, no matter the quantity is large or small, we supply you best forged steel olets as fast as possible.
