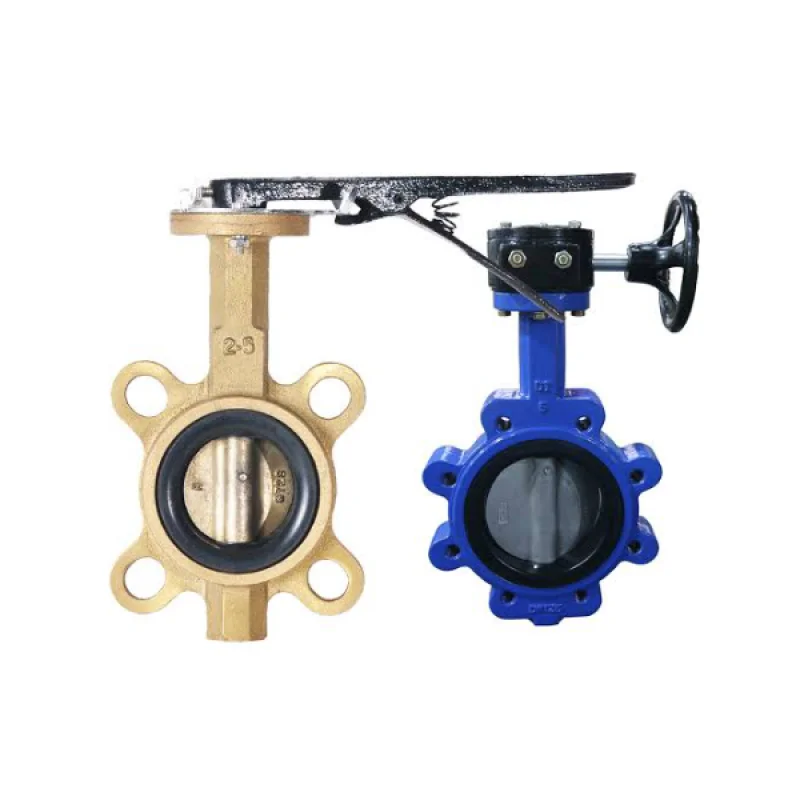

Marine Butterfly Valve

Product Features

·  Corrosion-Resistant Construction – Designed with durable materials suitable for seawater, salt spray, and harsh marine environments.

·  Compact and Lightweight – Space-saving construction makes installation and handling easier in shipboard and offshore piping systems.

·  Quick Quarter-Turn Operation – The 90° operating mechanism allows fast and efficient opening, closing, and flow isolation.

·  Reliable Sealing – High-quality seat and sealing components provide dependable shutoff and help minimize leakage.

·  Low Operating Torque – Optimized disc and stem design enables smooth operation with reduced operating effort.

·  Low Maintenance – Simple construction and fewer internal components help reduce maintenance requirements.

·  Good Flow Control – The disc design provides efficient flow regulation with relatively low pressure loss.

·  Multiple Configurations – Available in different sizes, pressure ratings, materials, and connection types to suit various marine applications.

·  Reliable Marine Performance – Designed to withstand vibration, pressure fluctuations, and demanding operating conditions on ships and offshore facilities.

Specifications

1) Valve Size: 2''~24''

2) Applicable Rating: ASME 150#~1500#

3) Temperature: Down to -196 degrees

4) Code & Standard: BS, ASME, ASTM, KGSC

Designed by BS6364, ASME  B16.34, and ASME B16.25/16.5

5) Constructions

• End Connection: Flanged, Butt-Welded or RTJ Type

• Long Extended Bonnet

• Actuator: Gear-operated Type

• Pressure Relief Design (Pressure Balance Design)

• Fire Safety/Anti-static Design


Applications

Marine butterfly valves are widely used for flow control and pipeline isolation in ships, offshore platforms, and marine equipment. Typical applications include:

• Seawater Systems – Used for controlling seawater intake, discharge, and circulation.

• Ballast Water Systems – Provides reliable isolation and flow control in ballast piping.

• Cooling Water Systems – Suitable for engine, machinery, and equipment cooling circuits.

• Fire Protection Systems – Used in marine firefighting and fire-water piping.

• Bilge Systems – Helps control and isolate bilge water pipelines.

• Freshwater Systems – Used in potable, service, and utility water piping.

• HVAC Systems – Suitable for chilled water and cooling water circulation systems.

• Offshore Platforms – Used in utility, process, and seawater piping applications.

• Shipbuilding – Suitable for cargo ships, tankers, container vessels, workboats, and other marine vessels.
