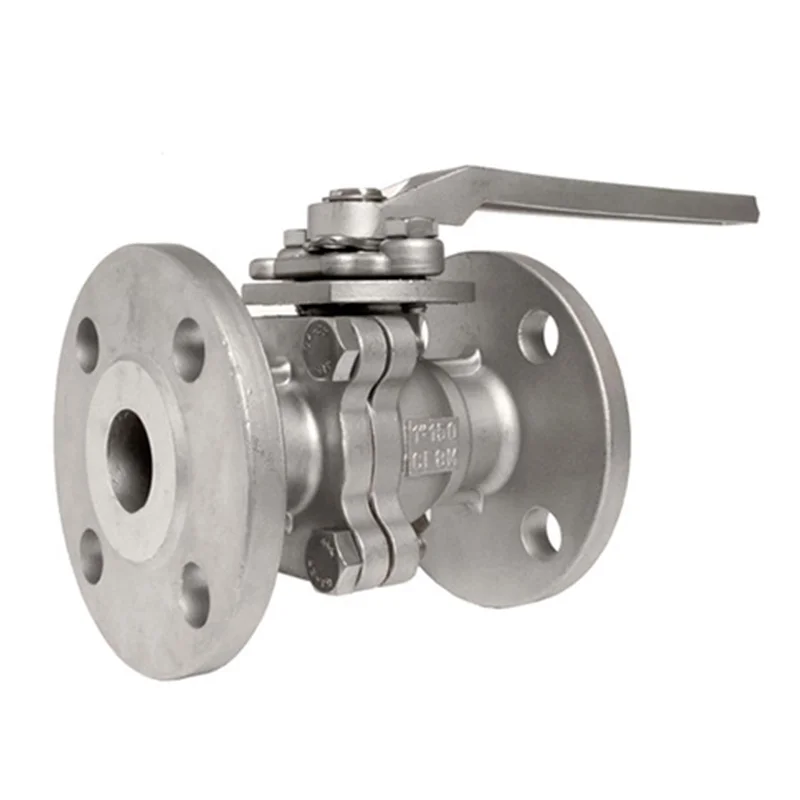

2PC Stainless Steel Flanged Ball Valve
Application:
2PC Stainless Steel Flanged Ball Valve
Size:1/2"~10"
Pressure:PN16-PN40
Body Materials:Stainless Steel ,CF8,CF8M
Ball Materials:Stainless Steel ,CF8,CF8M
Seal Materials:PTFE
Connection:flange
Drive type: handle
Structure type:floating
Specification:
| Parts | Material |
| Body | ASTM A351-CF8M |
| Cap | ASTM A351-CF8M |
| Ball | ASTM A351-CF8M |
| Ball Seat | TFM 1600 |
| Body Seal | PTFE |
| Thrust Washer | PTFE |
| Packing | PTFE |
| Stem | ASTM A276-316 |
| Gland Nut | AISI 304 |
| Stop Pin | AISI 304 |
| Handle | AISI 304 |
| Handle Sleeve | PVC |
| Stem Nut | AISI 304 |
| Spring Washer | AISI 304 |
| Bolt | AISI 304 |
| Gland | AISI 304 |
| Stopper | AISI 304 |
| Circlips for Shaft | AISI 304 |
| Steel Tube | AISI 304 |
| Wrench Block | AISI 304 |
| Bolt | AISI 304 |

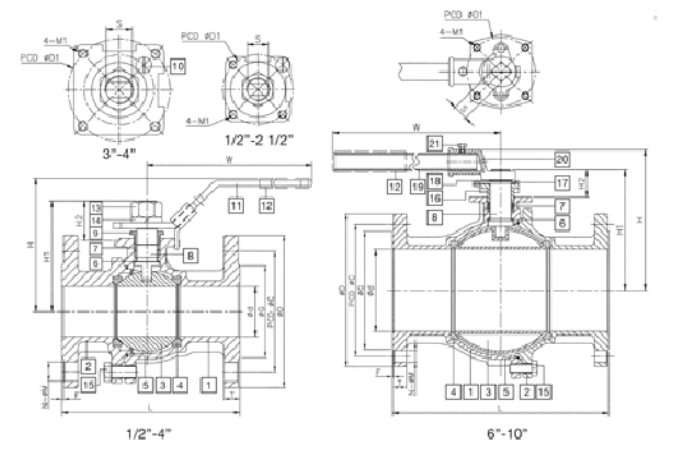

| SIZE | d | L | T | F | N | M | G | C | D | H | H1 | H2 | S | W | D1 | M1 | Torque | WT |
| 1/2" | 0.59 | 4.25 | 0.38 | 0.06 | 4 | 0.63 | 1.38 | 2.38 | 3.5 | 3.39 | 2.25 | 0.93 | 0.44 | 6.65 | 1.65 | M5 | 34 | 3.7 |
| 3/4" | 0.79 | 4.61 | 0.38 | 0.06 | 4 | 0.63 | 1.69 | 2.76 | 3.9 | 3.5 | 2.36 | 0.93 | 0.44 | 6.65 | 1.65 | M5 | 49 | 4.6 |
| 1" | 0.98 | 5 | 0.38 | 0.06 | 4 | 0.63 | 2.01 | 3.11 | 4.25 | 4.06 | 2.89 | 1.14 | 0.5 | 8.09 | 1.97 | M6 | 58 | 6.4 |
| 1-1/4" | 1.26 | 5.51 | 0.44 | 0.06 | 4 | 0.63 | 2.5 | 3.5 | 4.61 | 4.06 | 3.09 | 1.14 | 0.5 | 8.09 | 1.97 | M6 | 80 | 8.6 |
| 1-1/2" | 1.5 | 6.5 | 0.5 | 0.06 | 4 | 0.63 | 2.88 | 3.88 | 5 | 5.12 | 4.05 | 1.55 | 0.75 | 10.51 | 2.76 | M8 | 222 | 12.6 |
| 2" | 1.97 | 7.01 | 0.57 | 0.06 | 4 | 0.75 | 3.62 | 4.75 | 5.98 | 5.31 | 4.35 | 1.55 | 0.75 | 10.51 | 2.76 | M8 | 337 | 18.5 |
| 2-1/2" | 2.56 | 7.48 | 0.63 | 0.06 | 4 | 0.75 | 4.12 | 5.47 | 7.01 | 5.79 | 4.8 | 1.52 | 0.75 | 11.38 | 2.76 | M8 | 399 | 29.3 |
| 3" | 3.15 | 7.99 | 0.69 | 0.06 | 4 | 0.75 | 5 | 5.98 | 7.48 | 6.54 | 5.59 | 1.69 | 0.75 | 15.35 | 4.02 | M10 | 540 | 36.2 |
| 4" | 3.94 | 9 | 0.88 | 0.06 | 8 | 0.75 | 6.19 | 7.5 | 8.98 | 7.13 | 6.18 | 1.69 | 0.75 | 15.35 | 4.02 | M10 | 709 | 61.1 |
| 6" | 5.91 | 15.51 | 1 | 0.06 | 8 | 0.87 | 8.5 | 9.51 | 10.98 | 10.1 | 8.66 | 1.97 | 1.06 | 29.25 | 4.92 | M12 | 1682 | 119 |
| 8" | 7.87 | 17.99 | 1.13 | 0.06 | 8 | 0.89 | 10.63 | 11.75 | 13.5 | 13.15 | 11.83 | 3.37 | 1.42 | 33.07 | 5.51 | M16 | 4160 | 194 |
| 10" | 9.84 | 20.98 | 1.19 | 0.06 | 12 | 1 | 12.76 | 14.25 | 15.98 | 14.88 | 13.17 | 2.93 | 1.42 | 40.94 | 5.51 | M16 | 6638 | 359.4 |
*Actual torque values may vary. Please consult the Eathu Sales team.
**All torque values are in in-lb. Weight values are in lb.
Product Details
EATHU Stainless Steel Ball Valves Advantages
1.Fluid resistance is small, its resistance coefficient is equal to the same length of the pipe section
2.Simple structure, small volume, light weight.
3. Tight and reliable, the sealing surface material of the ball valve is widely used plastic, good sealing, and has been widely used in the vacuum system.
4. Easy to operate, open and close quickly, from fully open to fully closed just rotate 90°, easy to control from a distance.
5. Convenient maintenance, the ball valve structure is simple, the seal is generally active, disassembly and replacement are more convenient.
6. Wide range of applications, with through diameters from a few millimetres to several metres, from high vacuum to high pressure.
