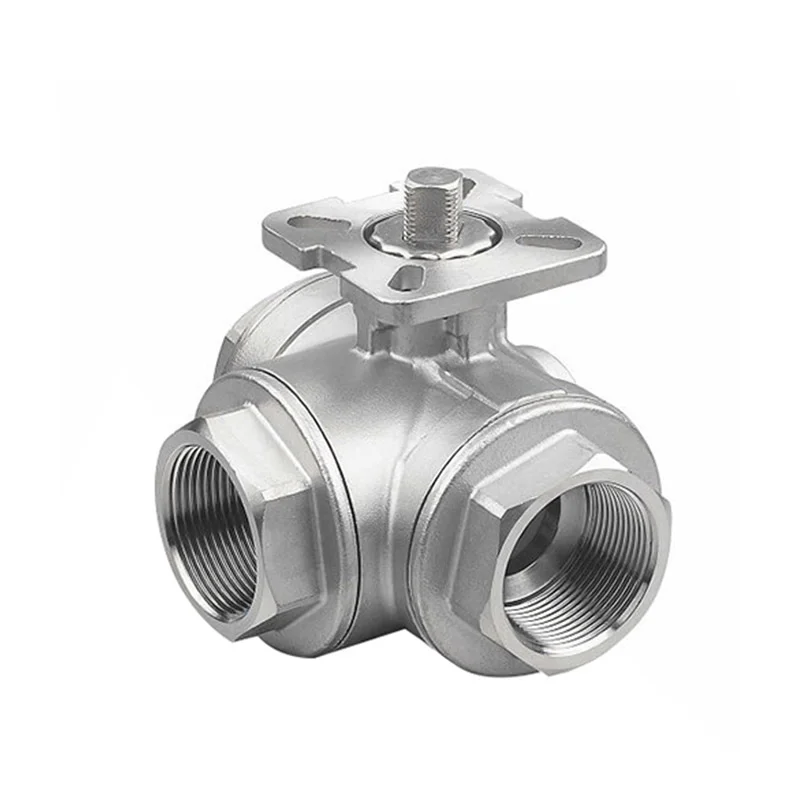

Stainless Steel 3way Threaded Ball Valve
Application:
Stainless steel 3way threaded ball valve
Size:1/4”-2”
Pressure:1.6Mpa-6.4Mpa
Body Materials:Stainless Steel ,CF8,CF8M
Ball Materials:Stainless Steel ,CF8,CF8M
Seal Materials:PTFE
Connection:thread (BSP,BSPT,NPT)
Drive type:handle
Structure type:floating
Share to:
Specification:

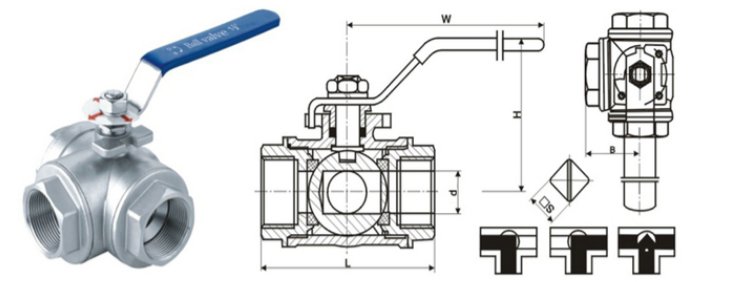

Dimensions:
| SIZE | DN | d | L | H | W | B | ISO5211 | □S |
| 1/4’’ | 6 | 4.2 | 64 | 32 | 85 | 32 | F2 | -7 |
| 3/8’’ | 10 | 6 | 64 | 32 | 95 | 32 | F2 | -7 |
| 1/2’’ | 15 | 10 | 68 | 34 | 108 | 34 | F3 | -9 |
| 3/4’’ | 20 | 15 | 78 | 60 | 115 | 39 | F3 | -9 |
| 1’’ | 25 | 18 | 86 | 60 | 135 | 43 | F4 | -9 |
| 1 1/4’’ | 32 | 25 | 111 | 76 | 150 | 55.5 | F4 | -11 |
| 1 1/2’’ | 40 | 32 | 126 | 85 | 175 | 63 | F5 | -11 |
| 2’’ | 50 | 40 | 143 | 95 | 190 | 71.5 | F5 | -11 |
