Forged Pipe Fittings

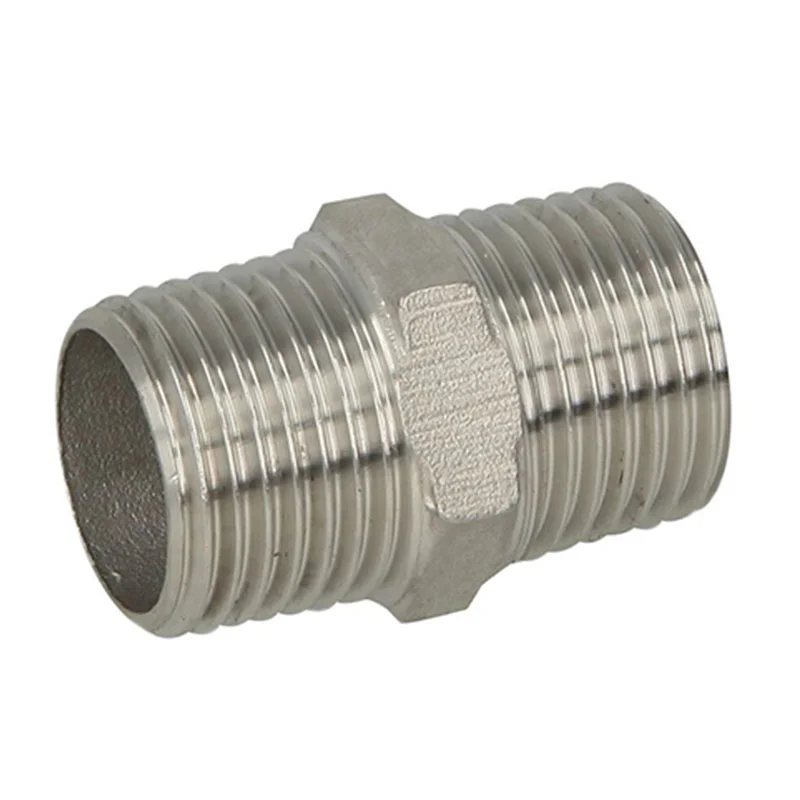

Stainless Steel Thread Hexagon Nipple
Application:
Stainless steel screwed Hexagon Nipple
Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"
Pressure: 150lbs
Dimension: ISO4144
Material: SUS201, SUS304, SUS316, (SS201 SS304 SS316)
Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1

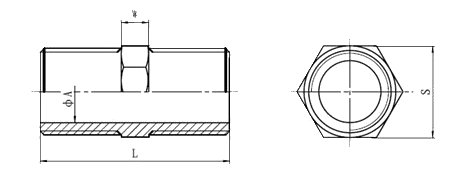

Specification:
| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| L | 20 | 25 | 27 | 34 | 36.5 | 42 | 47.5 | 47.5 | 57 | 61 | 67.5 | 80 |
| S | 11 | 14.5 | 18.5 | 22.5 | 28 | 34 | 44 | 50 | 62 | 78 | 90.5 | 116.5 |
| A | 5.5 | 8 | 11.5 | 15 | 20.5 | 26 | 34.5 | 40 | 51 | 65.5 | 77.5 | 101.5 |
| W | 4 | 4 | 5 | 5 | 5.5 | 6 | 6.5 | 6.5 | 7 | 7 | 7.5 | 8 |
Product Details
Stainless steel nipples：
EATHU can supply four kinds of stainless steel nipples:stainless steel hose nipple,stainless steel parallel nipple,stainless steel hexagon nipple,stainless steel welding nipple:
1.stainless steel hose nipple:Thread end connect to the threaded end pipe or pipe fittings and the other end connect to the hose.
2.stainless steel parallel nipple:A short stainless steel pipe with male threads,easy to connect the pipes with female thread ends.EATHU supply stainless steel parallel nipple in normal length and customized length.
3.stainless steel hexagon nipple:Also called hex nipple.Same as parallel nipple ,it is also used to connect two female thread ends pipes,it has a hexagonal section in the center for a wrench to grasp, make it easy to mounting and fastening.
4.stainless steel welding nipple:One end is thread type the other end is plain.Which allow a normal end pipe could connect with thread pipes ,pipe fittings or valves etc.,
Threads for all the stainless steel pipe nipples can conforme to ASME B 1.20.1(NPT) , DIN2999 & BS21,ISO228/1&ISO7/1 etc.,Pressure 150psi or 300psi;Material 202.304.316 etc., are all available.
EATHU can supply stainless steel pipie fittings with different wall thickness and unit weights with different prices.Which means you have more choices for normal quality or betterquality.
Welcome to contact us for more free information or a quotation.We are looking forward to hearing from you!
