Threaded Welded Outlet
Application:
Threaded Welded Outlet
Material: Cabon Steel S/10, S/40 Stainless Steel S/10, S/20 Material for forging
Surface Treatment: anti-rust oil or Electro Galvanized
Applied Pipe Type: ASTM A53 Grade A or B / ASTM A 106-B / KSD 3507 / KSD 3562 / KSD 3576
For Use With: Air, Natural Gas, Oil, Steam, Water
Threads: ASME B1.20.1, ISO 7/1
Specifications Met: ANSI/ASME B16.11, MSS SP-97
Specification:

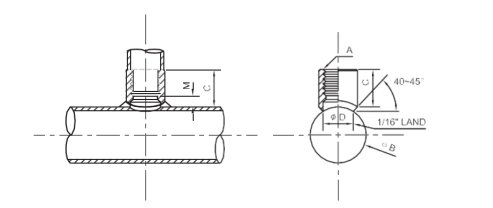

Threaded welded outlet dimension
Size | In | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
Pipe Run Size | In | 1-4" | 1-4" | 1-1/4"-6" | 1-1/2"-6" | 2"-6" | 3"-6" | 3"-8" | 4"-8" | 6"-8" |
A | In | 1.083 | 1.331 | 1.555 | 1.87 | 2.165 | 2.724 | 3.209 | 3.957 | 4.961 |
C | In | 1.063 | 1.126 | 1.248 | 1.374 | 1.626 | 1.752 | 2.217 | 2.5 | 3 |
Note:
Eathu have no UL/FM certificate for the Threaded Welded Outlet, only ISO and CE certificate.
Send samples can be accepted.
Threaded Welded Outlet used for fire hydrant, for cold water system please check high-pressure-threaded-outlet
Eathu MOQ is 500pcs for each size.
Product Details

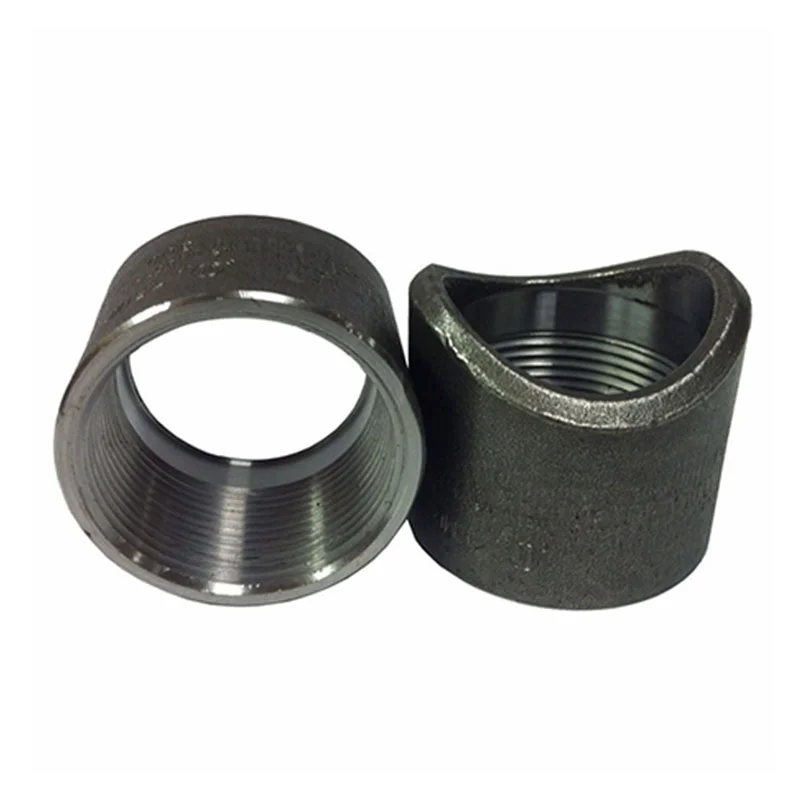

Threaded Welded Outlet

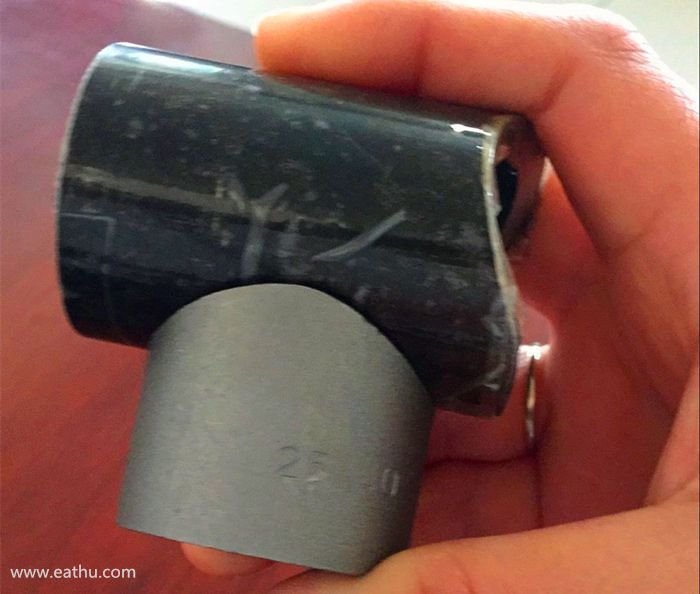

The threaded welded outlet we developed are ranging from 1/2″ to 4″. They are UnLets and SafeLet. Threaded welded outlet allow you to create a threaded outlet anywhere along a pipe. They are also known as branch connectors and are comparable to Thredolet. To install, drill a hole in your pipe to match the fitting’s pipe size and weld in place.
●Threaded Welded Outlet Fittings For Fire Protection & Other Low pressure pipeline system.
●Threaded Welded Outlet Fittings are rated for 300 psi when used in fire sprinkler system applications.
