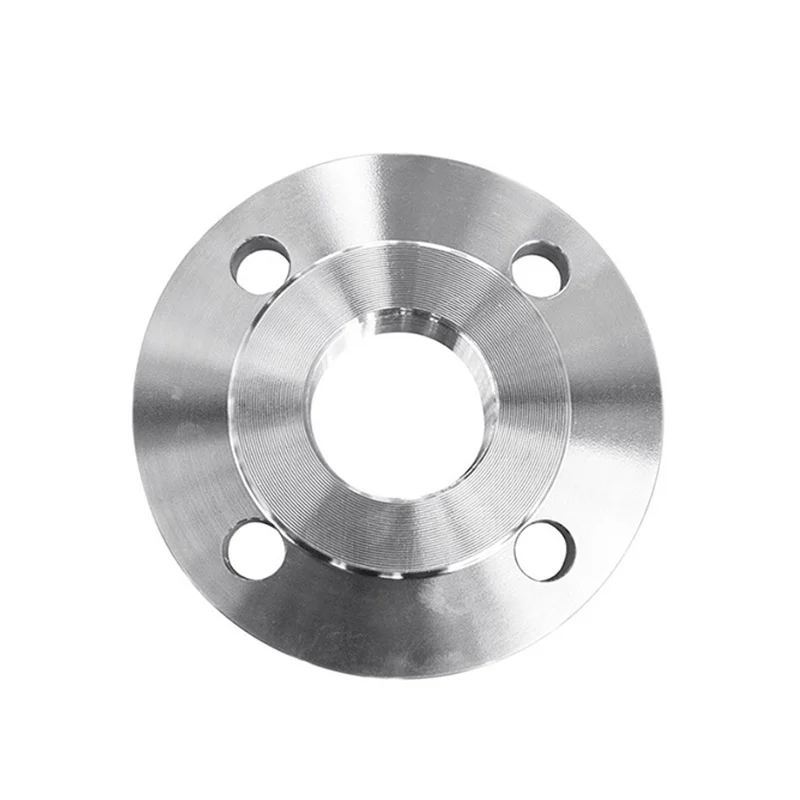

Stainless Steel Flat Flange | Eathu Flange
Application:
ASME B16.5 flat flange is one of a variety of flanges, using different material classes, according to different standards of production. By welding with another flange or steel tube, flat flanges can be used for different purposes, such as closing a pipe or connecting a valve to another pipe. As the flat flange manufacturers in China, EATHU offers flat flanges of different sizes and different material grades. A flat flange has a flat surface that allows maximum contact with other parts connected to or through the flange in piping applications.
Specification:
PRODUCT NAME | Stainless Steel Flat Flange |
SAMPLE SUPPORT | Yes |
DELIVERY TIME | Depends on Quantity and Other Requirements |
MOQ | 200kg / Depends on Flange Size |
PRICE | The Higher The Quantity, The Cheaper |
SIZE | 1/2"-60"(DN10-DN1500) |
MATERIAL | Carbon steel / ASTM Alloy Steel / Stainless steel |
THICKNESS | View Flange Catalog |
PRESSURE RATING: | View Flange Catalog |
SEALING SURFACE | FF, RF, MFM, TG, FF |
SURFACE TREATMENT: | Anti-rust oil / Raw. |
CERTIFICATION | ISO9001:2000 , API, CE, According to Requirements |
Tolerance | according to the standard |
Product Details
Why Choose Stainless Steel Flat Flange
The raised face plain flange is much popular in regular industry systems
Using flat flanges in industrial piping systems has several benefits. Firstly, they provide a secure and leak-free connection between pipes and equipment. Additionally, they allow for easy access to the piping system, making maintenance and repairs more manageable. Flat flanges are also versatile and can accommodate a wide range of piping systems.
Another significant advantage of flat flanges is their ability to handle high-pressure and high-temperature applications. Flat flanges are ideal for applications that require a reliable and durable connection in extreme conditions.
They are available in different materials, allowing for customization based on specific requirements.
EATHU teaches you to choose the right Flat flange
There are several factors that must be considered when choosing Flat Flange. These include size, pressure rating, temperature rating, material, and type of gasket used. The size of the flange should match the size of the pipe or equipment it is connected to. Pressure and temperature ratings should be appropriate for the application to ensure that the flange can withstand the conditions to which it is exposed.
The material of the flanges should be compatible with the piping or equipment to which they are connected and the type of fluid or gas flowing through the piping system. The type of gasket used should also be selected based on the requirements of the application, such as temperature and pressure.
Materials used for Flat flanges
Flat flanges are typically made from materials such as carbon steel, stainless steel, and alloy steel. The choice of material depends on the specific application and the environmental conditions. Here's a closer look at each material.
Stainless steel
Stainless steel is a popular material for flat flanges in industries such as food and beverage, pharmaceutical, and water treatment. It is highly resistant to corrosion and can withstand high-temperature and high-pressure applications. However, stainless steel flat flanges are more expensive than carbon steel flat flanges.
Carbon steel
Carbon steel is the most commonly used material for flat flanges. It is affordable, durable, and easy to work with. Carbon steel flat flanges are typically used in low-pressure applications, where corrosion resistance is not a major concern.
Alloy steel
Alloy steel flat flanges are typically used in high-pressure and high-temperature applications. They are highly resistant to corrosion and can withstand harsh environmental conditions. Alloy steel flat flanges are more expensive than carbon steel flat flanges but offer superior durability and strength.
It's important to choose the right material based on the specific requirements of the application. Factors to consider include the temperature, pressure, and type of fluid or gas flowing through the piping system.
EATHU Forging Factory Has Passed ISO 9001 ISO 14001 Certification
We are proud to introduce our flange factory and our ISO 9001 and ISO 14001 certifications. These certifications demonstrate our commitment to product quality and environmental protection.
Our quality management system ensures that every flange we produce meets international standards and customer requirements. You can trust that our products undergo strict quality control and are of reliable quality.
We are dedicated to reducing the environmental impact of our production process through our environmental management system. This system includes measures for conserving resources, managing waste, and controlling pollution. Our commitment to environmental protection is as strong as our commitment to product quality.
We look forward to establishing a long-term partnership with you and providing the highest quality products and services.
EATHU has a Well-Established Supply Chain System
The supply chain's integrity is crucial in this industry. Each step of the process, from raw material procurement for the flanges to their delivery to the customer, must be strictly managed to ensure efficient production and timely delivery. To guarantee efficient production and timely delivery of flanges, we have chosen suppliers who have passed our quality audits to become eathu's regular suppliers. They are guaranteed to meet our quality requirements. Eathu also manages inventory and logistics after production. Our continuous process optimization minimizes lead times and ensures timely delivery of stainless steel flanges to our customers.
Eathu prioritizes sustainability and environmental responsibility throughout the supply chain. This includes minimizing waste and using environmentally friendly production methods.
EATHU Provides Attentive After-Sales Service and Convenient Online Service
After the customer submits a product inquiry, we will respond promptly.
We offer technical support and solution design online, and provide real-time guidance. We also support remote video factory inspections, so customers can participate in the process without physically visiting the factory site. Once the remote video factory inspection is complete, we will provide a detailed online audit report.
Afterwards, our sales team will regularly follow up with customers regarding their factory inspection applications and audit progress, and communicate with them promptly.
